| Genel bakış | |
|---|---|

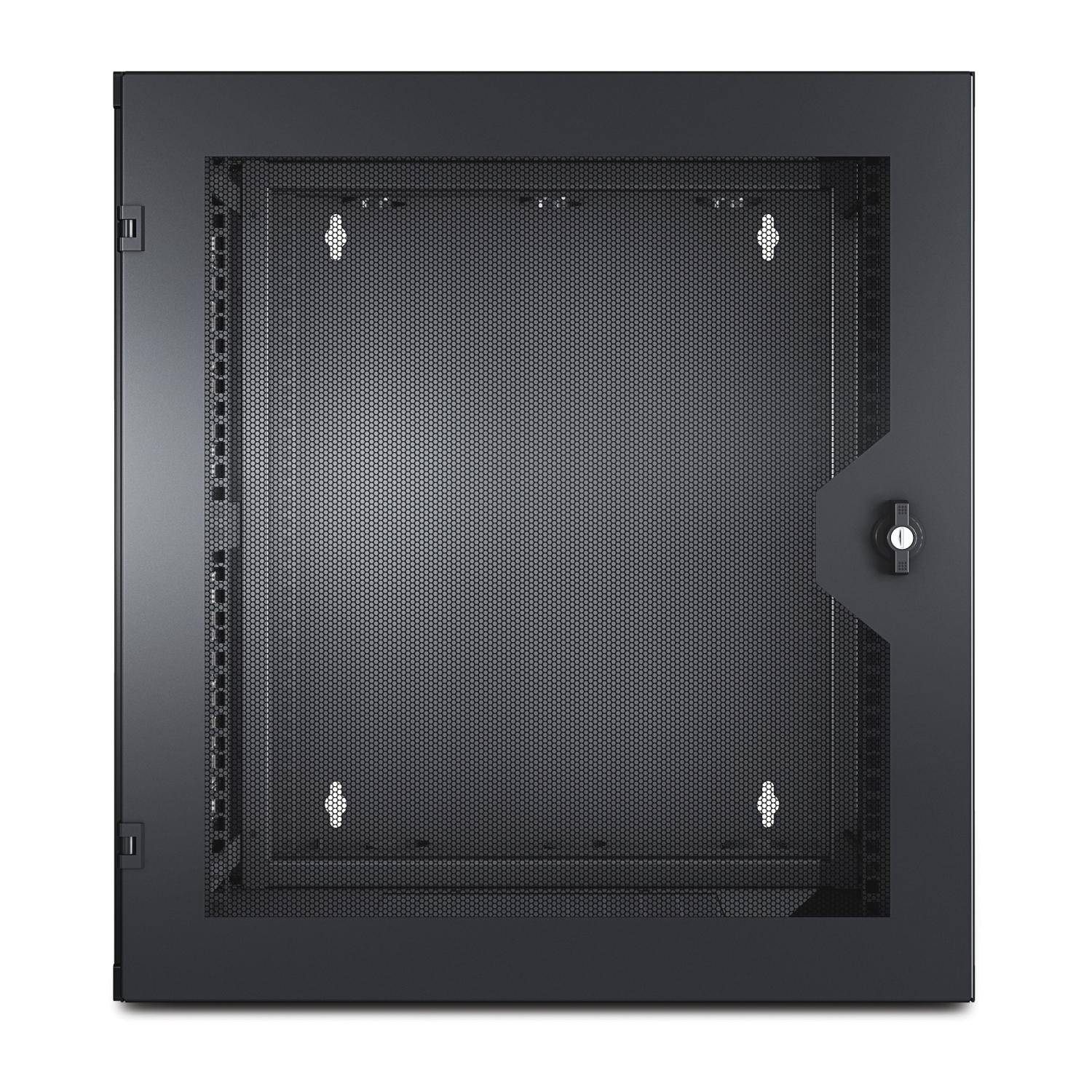

| Sunum | Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top-mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19" rack width, ships fully assembled, vented door, 5 year APC warranty. |
| Teslim süresi | Genellikle Stokta Bulunur |
| Ana | |
|---|---|
| Ürün ya da bileşen tipi | Kabin bölmesi |
| raf birimi sayısı | 13 U |
| kabloların sayısı | 1 |
| sağlanan ekipman | Anahtar(lar) Kullanım kılavuzu Duvara Monte kalıp |
| Fiziksel | |
|---|---|
| Yükseklik | 66,3 cm |
| Genişlik | 58,4 cm |
| Derinlik | 63,1 cm |
| Ürün ağırlığı | 42,73 kg |
| Renk | Siyah |
| Montaj tercihi | No preference |
| Montaj Tipi | Kabine monte edilemez |
| Maksimum Montaj Derinliği | 48,26 cm |
| rack width | 19" |
| Minimum çalışma frekansı | 16 gauge EIA mounting rail 16 gauge ön kapı 16 gauge post 13 gauge rear door 18 gauge roof 18 gauge side panels |
| kalıcı izin verilen yük | 90,72 kg statik |
| Uyumluluk | |
|---|---|
| Standartlar | EIA-310E |
| Paketleme üniteleri | |
|---|---|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 83,8 cm |
| Package 1 Width | 68,6 cm |
| Package 1 Length | 77,5 cm |
| Package 1 Weight | 52,17 kg |
| Sözleşme garantisi | |
|---|---|
| Garanti | 5 yıl onarım veya değiştirme |
